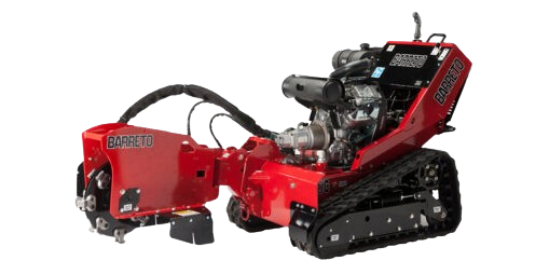

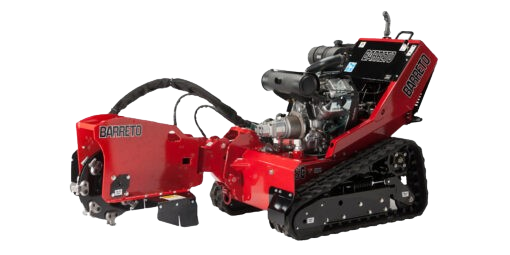

GRINDER, STUMP 19" BARRETO 30SGB

Start date: *

End date: *

Full Description

Easy controls operate the track drive and cutter wheel.
Time-tested track design absorbs impact and provides stability.
Center-mounted cutter wheel provides 134º head swing.
Gear pumps coupled to the engine drive the cutter wheel, tilt, and swing.
Counterbalance valves on each track drive prevent motors from slipping.
Trailer available for an additional cost.

Minimum :	$214.33 per 4 hours
Daily :	$308.43
Weekly :	$888.68

increase decrease

Overview
Contact Us

Full Description

Easy controls operate the track drive and cutter wheel.
Time-tested track design absorbs impact and provides stability.
Center-mounted cutter wheel provides 134º head swing.
Gear pumps coupled to the engine drive the cutter wheel, tilt, and swing.
Counterbalance valves on each track drive prevent motors from slipping.
Trailer available for an additional cost.

Only registered users can write reviews

Your name *

Your email *

Enquiry *

Specifications

ENGINE:
Briggs & Stratton Vanguard V-Twin 31hp

DETAILS:
Height: 49.5"
Length (head to side): 79"
Length (head straight): 98"
Width: 35.5"
Weight: 1,700 lb.
Hydraulic Reservoir: 14 gallons
Hydraulic Flow to Head: 13.3gpm
Track Width: 7.1"
Total Ground Contact: 470 sq. in.
Ground Drive Forward: 290 ft/min
Ground Drive Reverse: 180 ft/min

WHEEL SPECIFICATIONS
Cutting Wheel: 19.2" diameter to tooth
Cutting Teeth: 0.750 thick, 16 green teeth
Cutting Depth: 12"
Cutting Height: 32"
Head Swing: 134°, 99.7" arc
