LIFT, 41'-50' TOWBEHIND

Start date: *

End date: *

Full Description

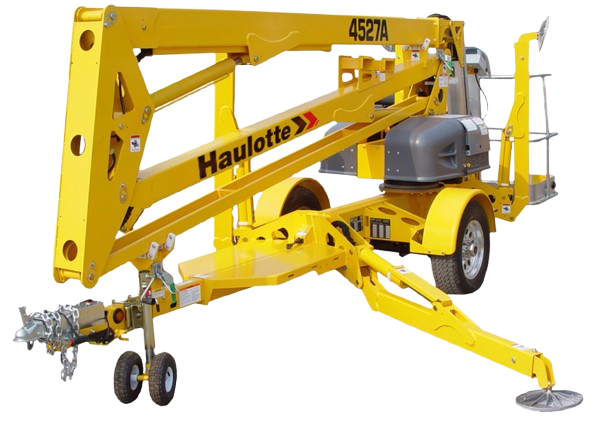

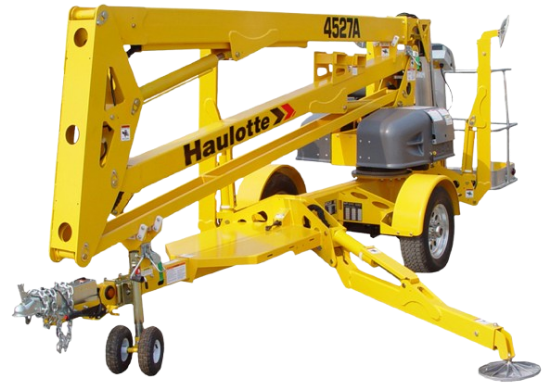

With a working height of 51 feet and useable both in and outdoors, the 4527 A is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design makes them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.

Minimum :	$229.76 per 4 hours
Daily :	$289.25
Weekly :	$867.66

increase decrease

Overview
Contact Us

Full Description

Only registered users can write reviews

Your name *

Your email *

Enquiry *

Specifications

Working height		51 ft
Platform height		45 ft
Horizontal outreach (from centerline)		27 ft
Horizontal outreach (from edge of footpad)		21 ft
Up and over height		20 ft 9 in
Lift capacity		500 lb
Length - stowed		20 ft 8 in
Width stowed		5 ft 6 in
Height stowed		6 ft 8 in
Platform size		4 ft 1 in x 2 ft 9 in
Widest Point		13 ft 9 in
Widest Point	13 ft 6 in
Turntable rotation	350° non-continuous
Jib - length	4 ft 3 in
Jib - Vertical Motion	150° (+ 70 / - 80)
Tow speed rating	65 mph
Leveling capability	12.5 °
Tire size	ST 225 / 75 R15
Power source	4 x 6 V 245 amp-hr
Tongue weight (no options)	290 lb
Weight (no options)	4,200 lb
