LIFT, 51'-60' TOWBEHIND

Start date: *

End date: *

Full Description

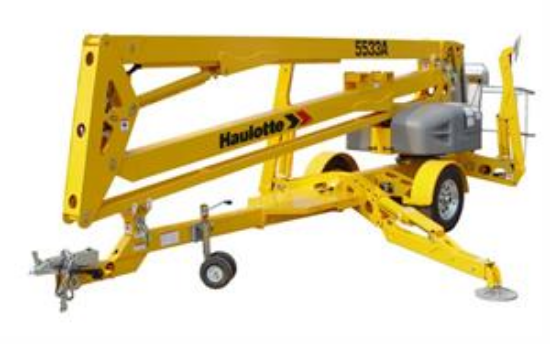

With a working height of 61 feet and useable both indoors and outdoors, the 5533 A trailer mounted boom is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design make them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.

Minimum :	$285.17 per 4 hours
Daily :	$342.60
Weekly :	$1,027.79

increase decrease

Overview
Contact Us

Full Description

Only registered users can write reviews

Your name *

Your email *

Enquiry *

Specifications

Working height	61 ft 3 in
Platform height	55 ft 3 in
Horizontal outreach (from centerline)	33 ft 5 in
Horizontal outreach (from edge of footpad)	27 ft 4 in
Up and over height	23 ft 1 in
Lift capacity	500 lb
Length - stowed	23 ft 8 in
Width stowed	5 ft 7 in
Height stowed	6 ft 9 in
Platform size	4 ft 1 in x 2 ft 9 in
Turntable rotation	350° non-continuous
Jib - length	4 ft 3 in
Jib - Vertical Motion	150° (+ 70 / - 80)
Tow speed rating	65 mph
Leveling capability	12.5 °
Tire size	ST 225 / 75 R15
Power source	4 x 6 V 245 amp-hr
Tongue weight (no options)	335 lb
Weight (no options)	4,800 lb
Widest Point	14 ft 8 in
Widest Point	15 ft
